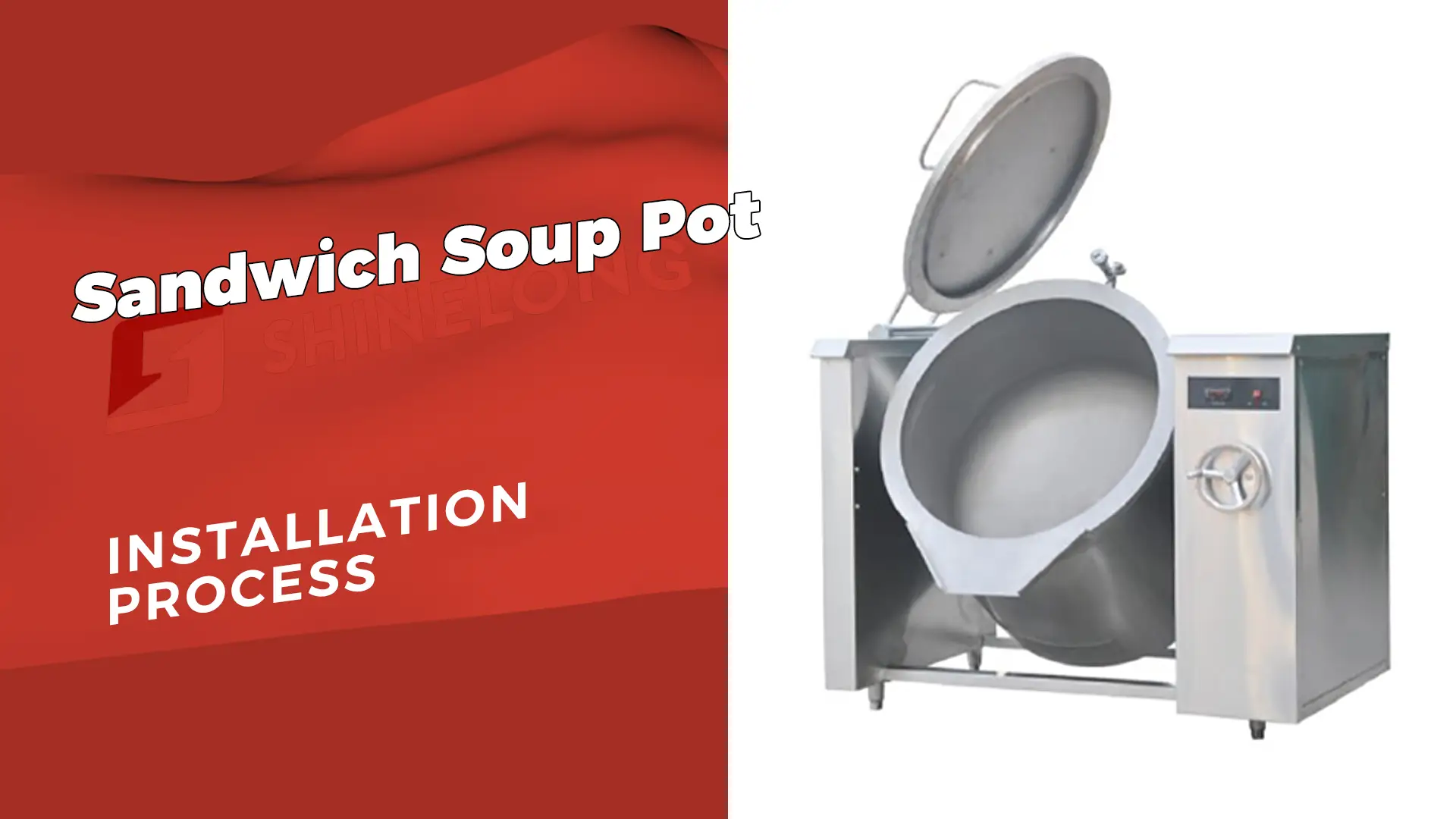

Product number: Electric Swing Steam Jacketed Soup Pot
Dimensions (mm): 1300*1100*1000,1400x1200x1000,1550x1350x1000
rated power: 18kw, 24kw, 27kw
Pot outer diameter: 600x600,700x600, 0850x600
capacity: 150,200,300
Water Inlet Installation
Take Off Left-side Board
Connect Inlet Pipe
Access Electronic Control System
Take Off Right-side Board
Plug in Fire Wire
Orange、Brown、and Black Wire connect to L1、L2、and L3
Plug in Zero Wire and Ground Wire
Blue One is Zero Wire, Yellow One is Ground Wire
Go Through the Reserved Hole
The wire should not Block the Switch
Connect Power Supply
Plug in FireWire, Zero Wire, Ground Wire
Three-phase 380 Voltage is Required
Detect Voltage
Turn off the Electricity Switch before the Detection
Here is L1, L2, and L3 In Sequence
Detect the Voltage between 3 Fire Wire
The First One is Zero Wire
Detect The Balance of Three-phase Electric
Start the Equipment
Turn on the Electricity Switch
Press Power Button
When the display lights up, it means the installation is correct.
